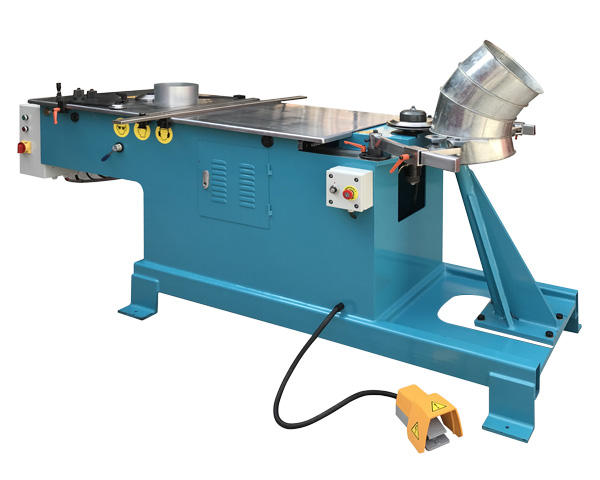

High Speed Elbow Machine
Features:
1.Double table,large capacity,material thickness can each 1.5mm.
2.Consisten quality.high production speed,maximum flexibility ,no need to change equipment.
3.Virtually maintenance-free,lubrication-free,high-quality parts,high-qualtiy welds and all rotating tools made of hardened steel.
Technical Parameter:
1.Diameter range:125-1250mm (option:100mm)
2.Thickness of Material :
0.4-1.5mm （galvanized plate）
0.4-1.2mm （stainless steel）
0.4-1.5mm （aluminium）
3. Electrical Connection:3*380V/50Hz/4kVA
High production Gore Locker produce standing lockseam elbows and reducers .
The high flexibility isachieved by means of 2 separate workstations:a flanging station and seam
closing station and seam closing station.Thus the machine is always ready for operation without time-consuming
coversion.The standing seam reduce welding to just one longitudinal seam and imporves rigidity.
